Battery wiring diagram/schematic 15S3P (CBXR)

When I bought my first board in September 2023, just a month later I was building my first 15S3P battery.
Having some basic knowledge of electronics and soldering, the task didn’t seem overwhelming as long as everything was done pragmatically.

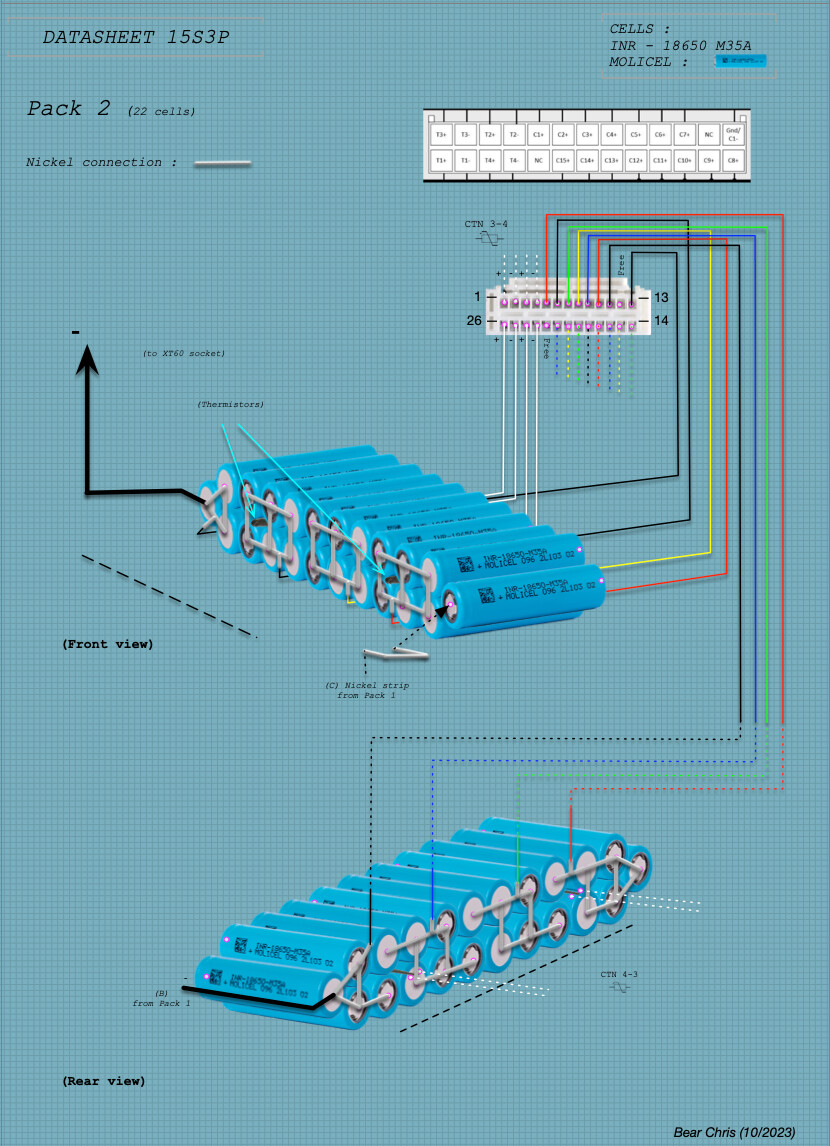

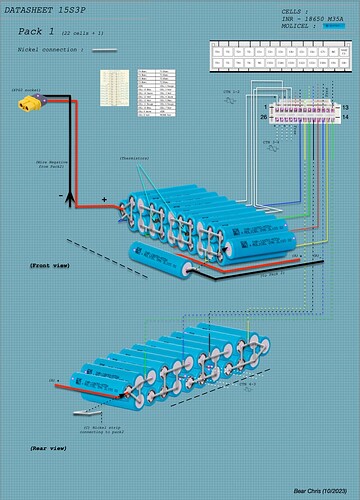

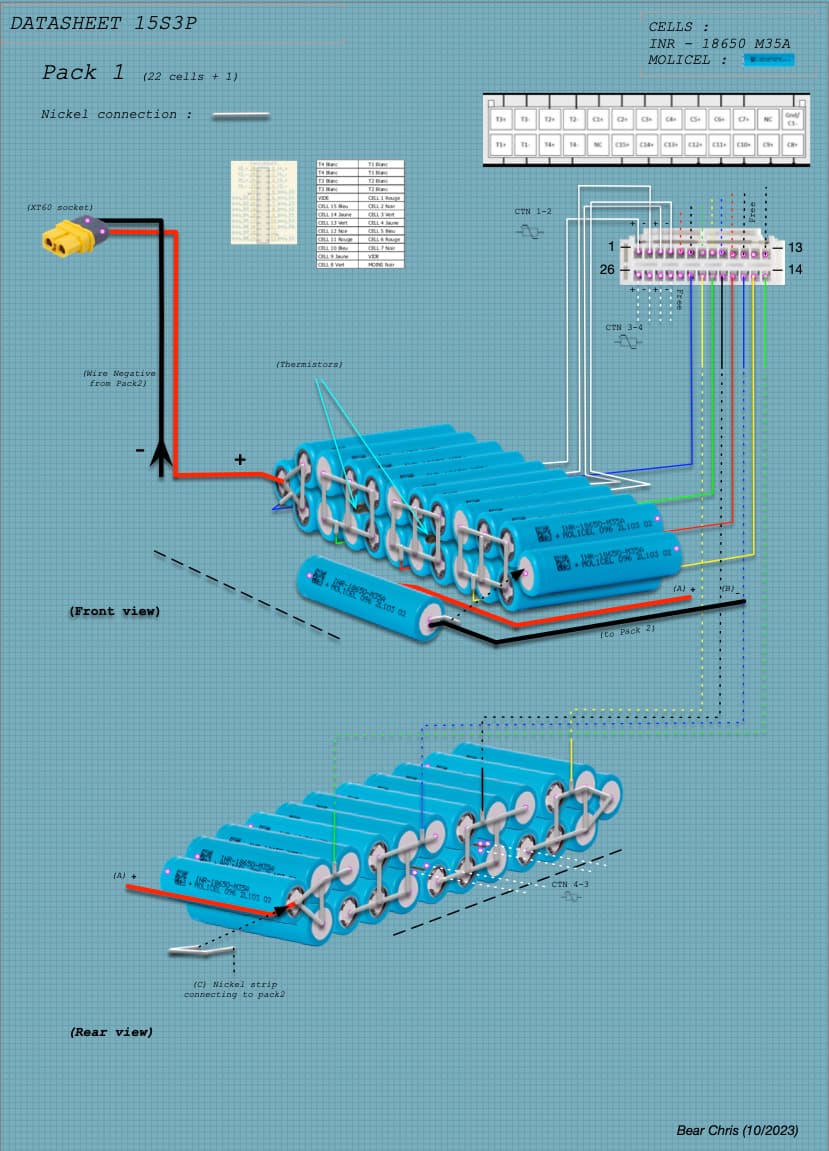

So I began by creating a diagram to avoid mistakes, and I wanted to share it with you.

Thanks to Spencer Hiren and Frédéric DV (a pioneer of VESC Onewheel in France) for their help. :call_me_hand:

You can also download the PDF version here : PDF
