So, I’m building a board, and realized the only rear light I have is an XR rear light (it’s new) and as we all know the 301 has a 12v rear light output. No worries have a buck converter for that problem. Now, if I just knew what went where. Can’t find a pinout of the light. I’ve searched here and reddit, so if this is listed, it’s not showing up in our search function. Thanks for any help.
deanaoxo

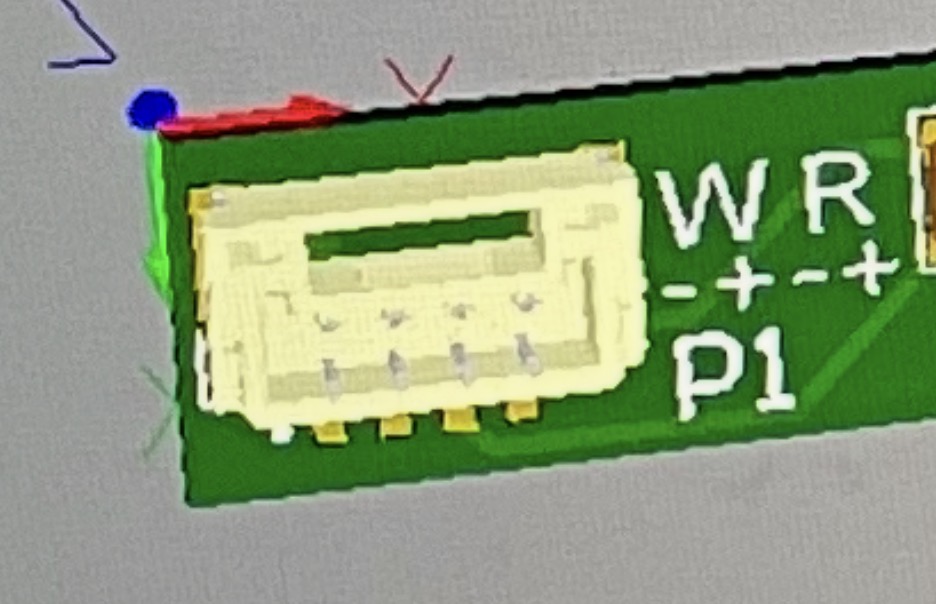

This should be the pinout for a rear XR light bar; white negative & positive, red negative & positive
1 Like

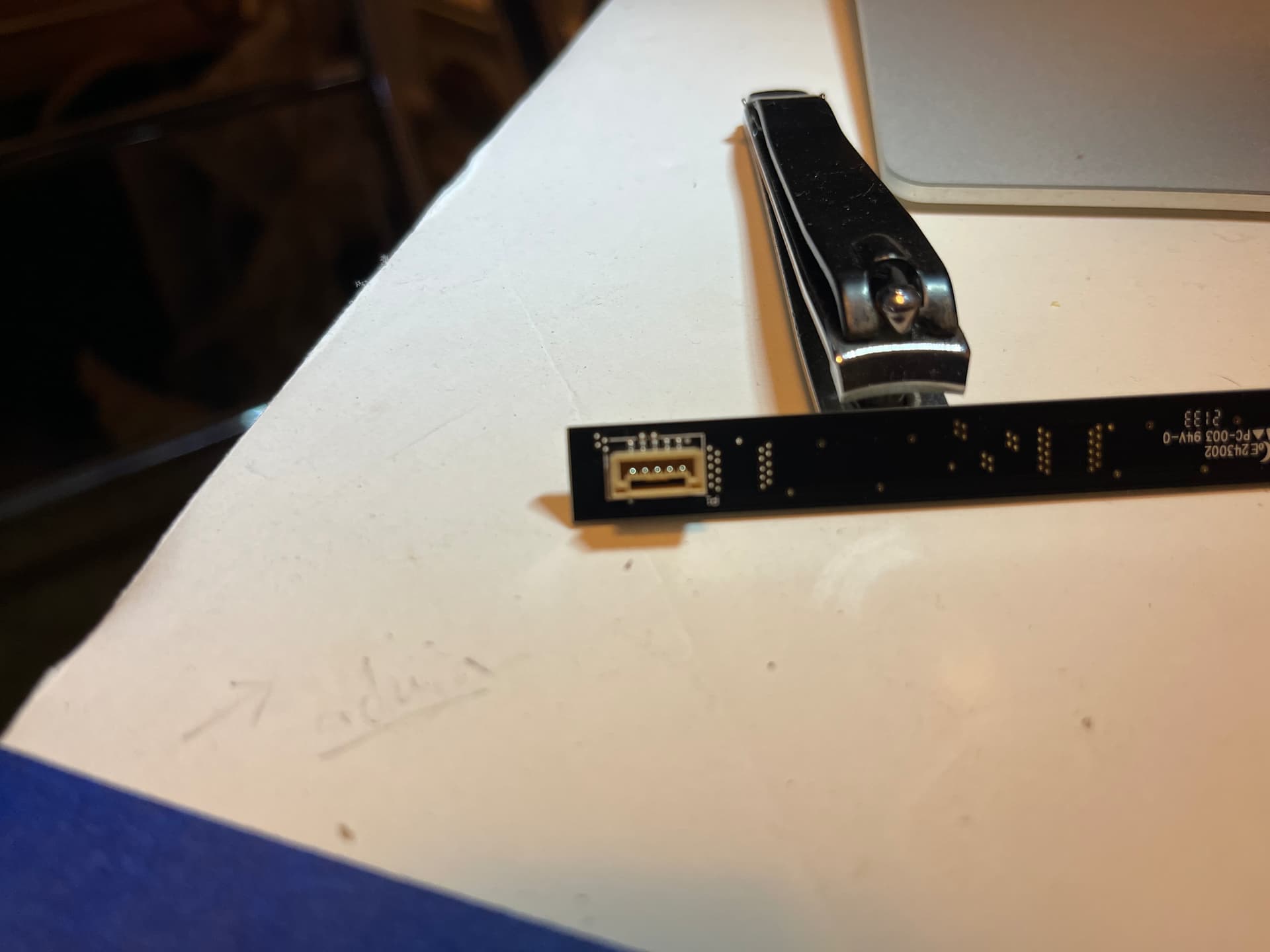

There are 5 pins on the FM rear light bar that I have. I’m going to noodle around with an old one, and hope I don’t blow it. I’ll let you know. (edited)None of the old light bars responded, here goes nothing with the new one. . . which, has 5 pins. . .shown below.

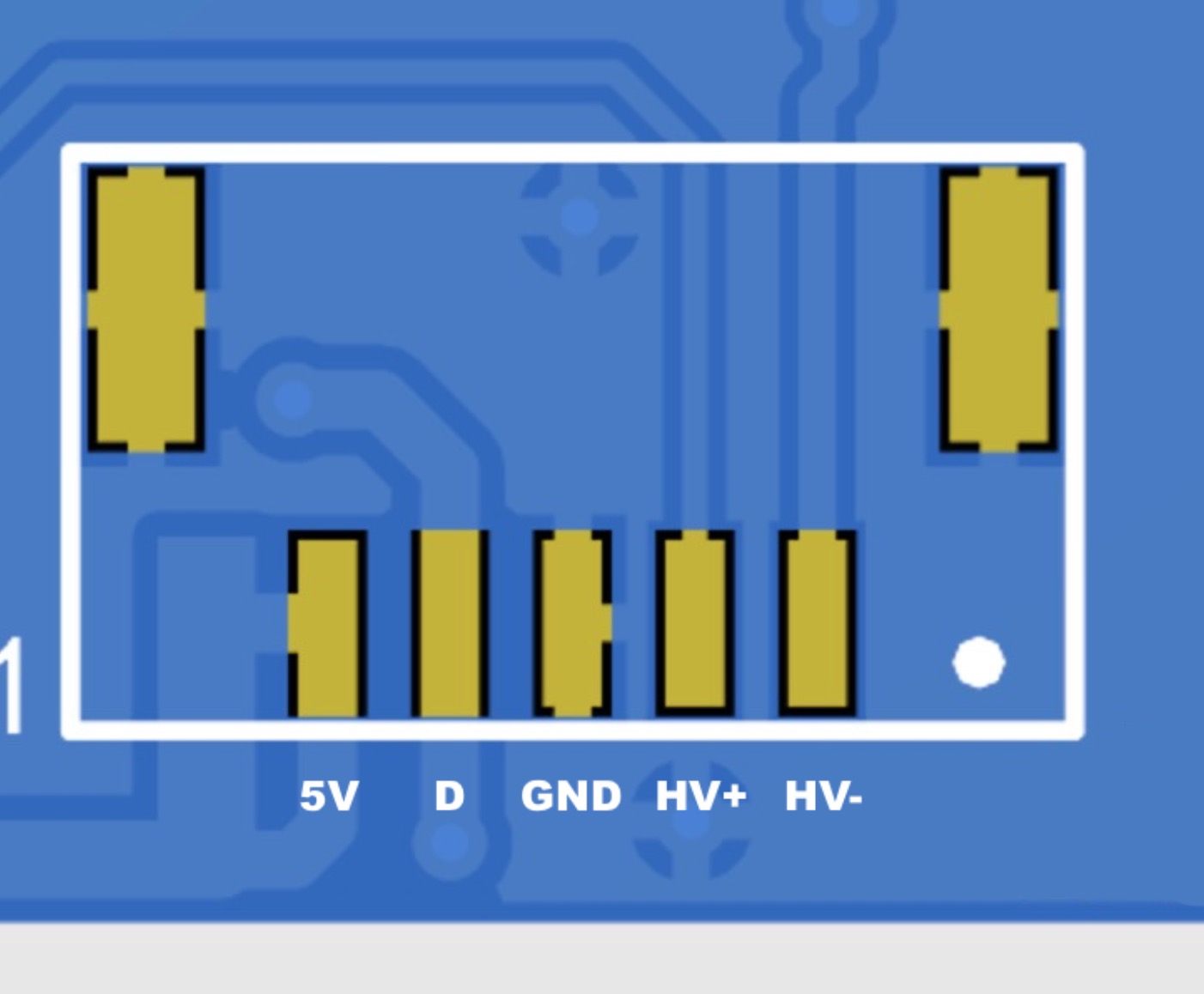

This should be for the GT light bar.
The red LEDs are actually RGB and the high beams are the HV pins
1 Like
