LED lights on Little FOCer v3.1 - Buck Boosters?

Help Desk
1

Hi there!

Question: Why can’t you use the 5v rail on the FOC 3.1 board to power LED lights?

I have read that the power output on the 5v rail is not consistent in either voltage or amps to power LED lights.
I have also read that LED lights would pull too much current from the 5v rail, placing a toll on the FOC, leading to unusual/risky FOC behavior.

I do not know if what I have read is accurate, or if it’s anecdote. Can someone here confirm?

See below for my thoughts on how to get this to work, and please let me know of any potential problems or hazards of doing it this way.

If the 5v rail is delivering inconsistent voltage and amperage, couldn’t you just wire in a 5v buck booster to level out the power?

FOC 3.1 5v rail:

foc
foc1780×1322 192 KB

foc2
foc21860×1018 51 KB

Adafruit Buck Booster:
Screen Shot 2023-08-25 at 12.16.36 PM

Adafruit Buck Booster
“DC/DC boost converter module can run from 1.8V batteries or higher, and convert that voltage to 5.2V DC for running your 5V projects.”

Wouldn’t the buck booster stabilize the output of the 5v rail and power the LEDs? I’ve tested the buck booster with batteries from 1.8v through to 3.7v, and it works great.

Any thoughts?

Thanks!

2

Unfortunately the 5V supply current is weak. 250mA is considered a safe amount for it

4

I used the Ugland 5V power supply and WLED VESC controller on my GTV using stock lights until I mak a set of SK6812 lights.

https://www.ugland.camera/vesc
If you need help wiring it up I’m glad to assist.

5

How would you wire it

6

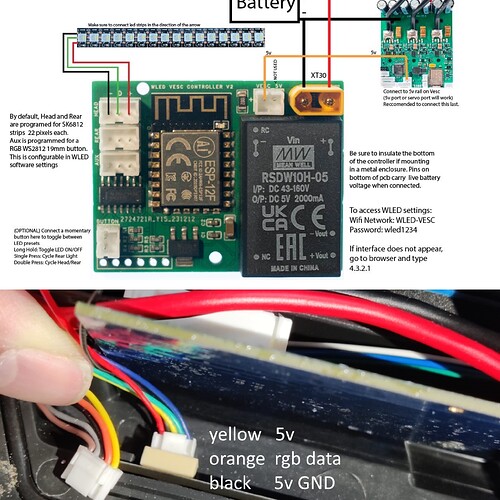

Splice from the discharge XT60 connector in the controller box to a 2-pin JST-PH connector or XT30 connector depending which version of the 5V buck converter you use. This will be the power input to the buck converter. Then make a 1 wire jumper to connect to the 5V Enable on the WLED controller to the 5V rail on the VESC. A 2-pin cable for 5V in on WLED controller from the 5V OUT on the buck converter. Then simply wire up the lights.

image2048×2048 728 KB

7

Ohh ok when I buy this stuff from Ugland Vesc does it come with the JST connectors and stuff or do I have to buy it separately from like amazon

8

Negative, it’s all DIY.
