I’m having trouble finding a pin diagram for the GT motor connector. Does anyone here know where I can find one?
I’m having trouble finding a pin diagram for the GT motor connector. Does anyone here know where I can find one?
hall sensor red = positive, black = negative, white = temperature. the rest are hall 1, hall 2, and hall 3, which are all interchangeable.

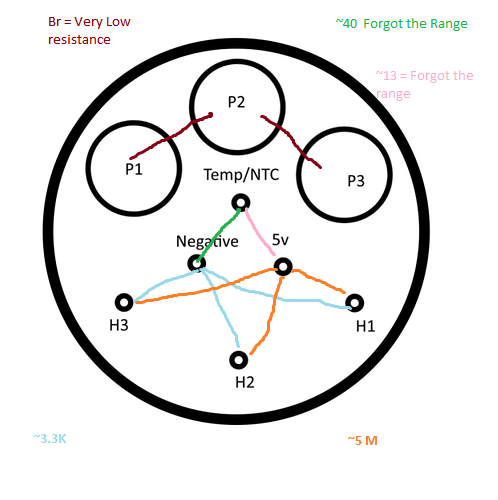

This might help
Was distracted and forgot the range but this may help someone out, if looking at their motor connections.
